Product Description

Construction:

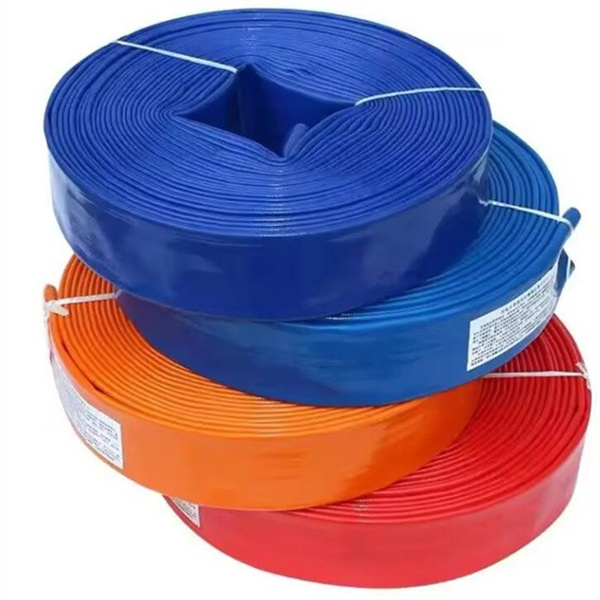

Tube and Cover: PVC, blue,orange,red.

Reinforcement: high tensile polyester braiding



Application:

PVC layflat hose is designed for light and heavy duty applications,the hoses are most commonly used in agricultural equipment where continuous water flow through irrigation systems is required. Other appliaction include water pump, pool & spa, construction, mines and marine.



Characteristic:

Light weight,Good flexibility.

Corrosion resistance,anti-aging.

Easy handle & storage.

Various colors available.

Assemblies and cut lengths available.

Light duty pvc layflat hose

Size	I.D	TH	W.P	B. P	Length	Weight	Volume
inch	mm	mm	bar	bar	m/roll	kg/m	m³/roll
1"	25	1.3	4	15	100	0.15	0.020
1-1/4"	32	1.2	4	15	100	0.17	0.023
1-1/2"	38	1.2	4	15	100	0.20	0.024
2"	51	1	4	12	100	0.23	0.030
2-1/2"	65	1.1	4	12	100	0.32	0.034
3"	76	1.2	4	12	100	0.36	0.045
4"	103	1.25	4	12	100	0.55	0.085
6"	153	1.35	3	9	100	0.90	0.120
8"	203	2	3	9	100	1.60	0.205
10"	255	2.5	2.5	7	50	2.60	0.175
12"	305	2.4	2	6	50	2.91	0.210
14"	358	3.1	2	6	30	5.10	0.260
16"	408	3	2	6	30	6.00	0.500

Heavy duty pvc layflat hose

Size	I.D	TH	W.P	B.P	Length	Weight	Volume
inch	mm	mm	bar	bar	m/roll	kg/m	m³/roll
3/4"	20	1.55	10.5	31.5	50	0.14	0.010
1"	25	1.8	10.5	31.5	50	0.20	0.014
1-1/4"	32	1.5	10.5	31.5	50	0.21	0.014
1-1/2"	40	1.9	10.5	31.5	50	0.30	0.020
1-3/4"	45	2	10.5	31.5	50	0.35	0.022
2"	51	1.8	10.5	31.5	50	0.42	0.029
2-1/2"	64	1.9	10	30	50	0.55	0.043
3"	76	2	8	24	50	0.66	0.050
3"	76	2.55	10	30	50	0.85	0.054
4"	103	2.4	8	24	50	1.00	0.071
6"	153	3	8	24	50	2.00	0.120
8"	203	3.2	6	18	50	2.80	0.172
