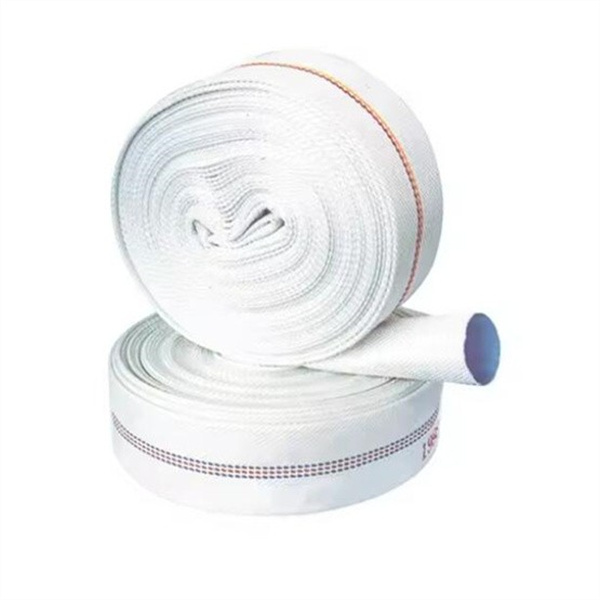

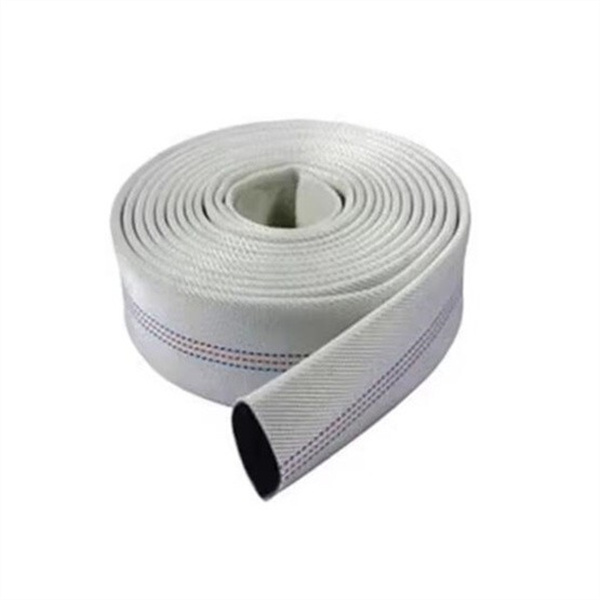

Canvas Fire LayFat Hose
info@pushihose.com
Product Description
Construction:
Cover:PVC/PU/RUBBER
Reinforcement:Polyester Jacket
Applicaton:
Fire-fighting,chemical industry,irrigation,agriculture,mining
Features:
Light weight,oil resistance,long life sevrice.
Working pressure:4bar,6bar,8bar,10bar,13bar,16bar,20bar,25bar.
I.D.
W.P.
B.P.
Length
inch
mm
Bar
Mpa
Bar
Mpa
m
1"
25
13-25
1.3-2.5
39-75
3.9-7.5
30
1-1/4"
32
8-25
0.8-2.5
24-75
2.4-7.5
30
1-1/2"
38
8-25
0.8-2.5
24-75
2.4-7.5
30
1-3/4"
45
8-25
0.8-2.5
24-75
2.4-7.5
30
2"
51
8-25
0.8-2.5
24-75
2.4-7.5
30
2-1/2"
64
8-25
0.8-2.5
24-75
2.4-7.5
30
2-3/4"
70
8-25
0.8-2.5
24-75
2.4-7.5
30
3"
76
8-25
0.8-2.5
24-75
2.4-7.5
30
4"
102
8-25
0.8-1.6
24-48
2.4-4.8
30
5"
127
8-25
0.8-1.3
24-39
2.4-3.9
30
6"
152
8-25
0.8-1.3
24-39
2.4-3.9
30
8"
200
8-25
0.8-1.3
24-39
2.4-3.9
30
