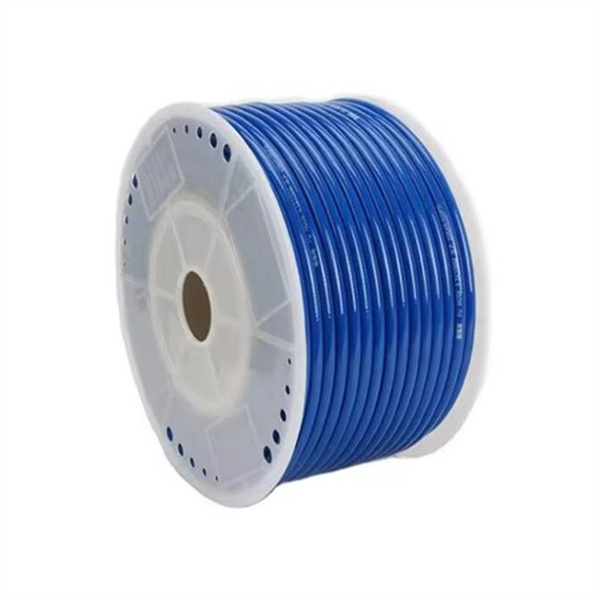

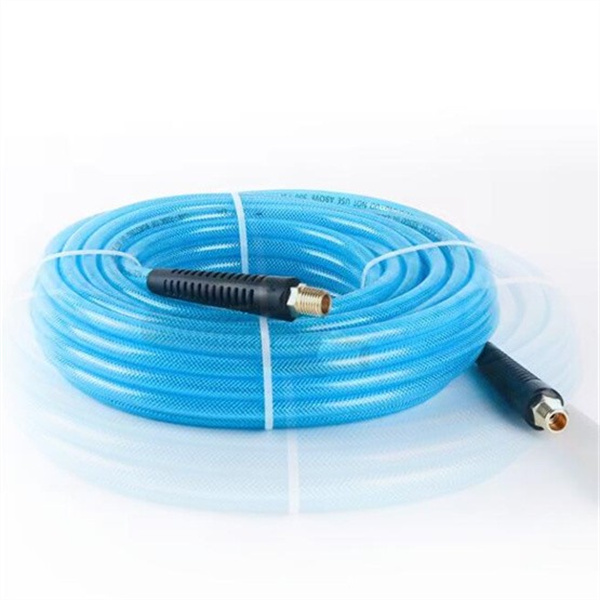

PU Braiding Hose
info@pushihose.com
Product Description
PU Briaded Hose Application:
The flexible PU hose is used for industry robots and pneumatic tools, assembly plant barometric tool, and duct with pressure. Transport water and other liquid. Vehicles service and house painting.
PU Briaded Hose Characteristics:
●Braided PU hose has excellent flexibility,bending radius is small.
●Working pressure is 1.8 times of single -layer PU Hose.
●The PU hose is non-toxic, smelless.
●Hardness is constant, service life is long.
Color: clear, black, blue, red, yellow, green, white, orange.
Temperature: -40℃ to 90℃
| Polyurethane Braided Hose | |||||||
| Model | nside | Oterside | Iength | Working | (20℃) Disruptive | Bending | Working |
| Diameter | Diameter | Pressuer | Pressure | Radius | Temperature | ||
| mm | mm | M | M | MPa | mm | ℃ | |
| PU8*5-100M | 5 | 8 | 100 | 2 | 6.5 | 25 | -40~80 |
| PU10*6.5-100M | 6.5 | 10 | 100 | 2 | 6.3 | 30 | |
| PU12*8-100M | 8 | 12 | 100 | 2 | 6 | 35 | |
| PU14*10-100M | 10 | 14 | 100 | 2 | 5.5 | 40 | |
| PU16*12-100M | 12 | 16 | 100 | 2 | 5 | 50 | |
| PU1/4"-100M | 6.35 | 10 | 100 | 2 | 6.2 | 30 | |
| PU3/8"-100M | 9.5 | 13.5 | 100 | 2 | 5.8 | 35 | |
“Strength builds the foundation, and excellent services reach all over the world.”
create win-win situation with customers
We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.
