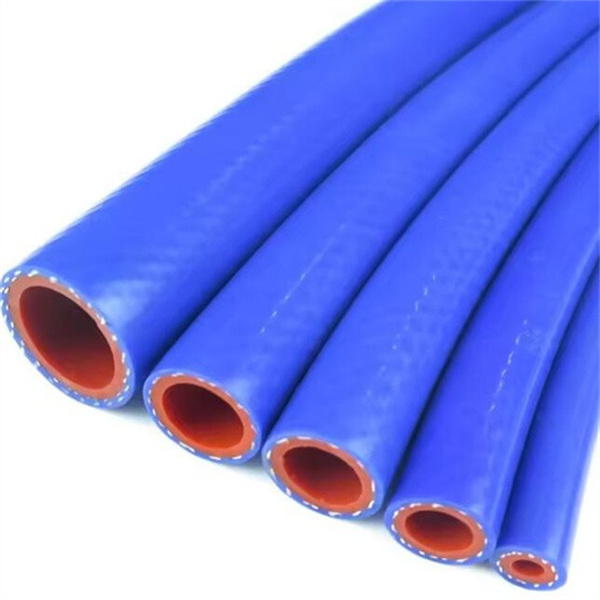

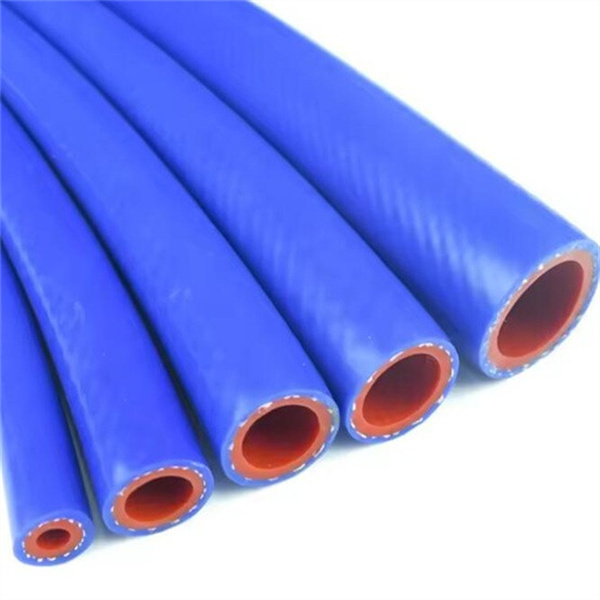

Special Air Hose
info@pushihose.com
Product Description
PVC Air Hose Application:
The PVC air hose is widely used in pneumatic tools, air compressors, Rock drill, automated air line, air supply, cleaning equipment, construction equipment and so on.
PVC Air Hose Characteristic:
● High tensile polyester reinforced
● Work under high pressure 300psi
● Strong peeling adhesion between fibre and pvc
● light, flexible, non-kinking, non-twisting
● UV and ozone resistant, weather resistant
● Can be used for jackhammer hose
PVC Air Hose Temperature: -10℃(-50℉) to 65℃(+150℉)
| Pvc Air Hose | |||||||
| Size | I.D | O.D | W.P. | B. P. | Length | Weight | Volume |
| inch | mm | mm | bar | bar | m/roll | g/m | m³/roll |
| 1/4" | 6 | 12 | 25 | 80 | 100 | 115 | 0.02 |
| 1/4" | 6.5 | 12.5 | 25 | 80 | 100 | 120 | 0.024 |
| 5/16" | 8.0 | 13.5 | 10 | 30 | 100 | 115 | 0.028 |
| 5/16" | 8.5 | 14.0 | 20 | 60 | 100 | 130 | 0.028 |
| 5/16" | 8.5 | 14.5 | 25 | 70 | 100 | 143 | 0.031 |
| 3/8" | 9.0 | 15.0 | 20 | 60 | 100 | 155 | 0.034 |
| 3/8" | 10 | 16 | 20 | 60 | 100 | 165 | 0.041 |
| 1/2" | 12 | 18 | 20 | 60 | 100 | 190 | 0.056 |
| 5/8" | 15 | 22 | 20 | 60 | 50 | 268 | 0.042 |
| 3/4" | 19 | 26 | 20 | 60 | 50 | 340 | 0.058 |
| 1" | 25 | 33 | 15 | 45 | 50 | 500 | 0.085 |
