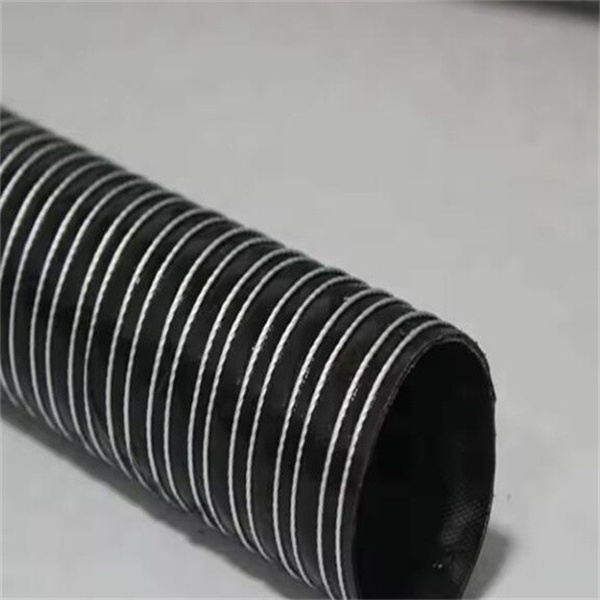

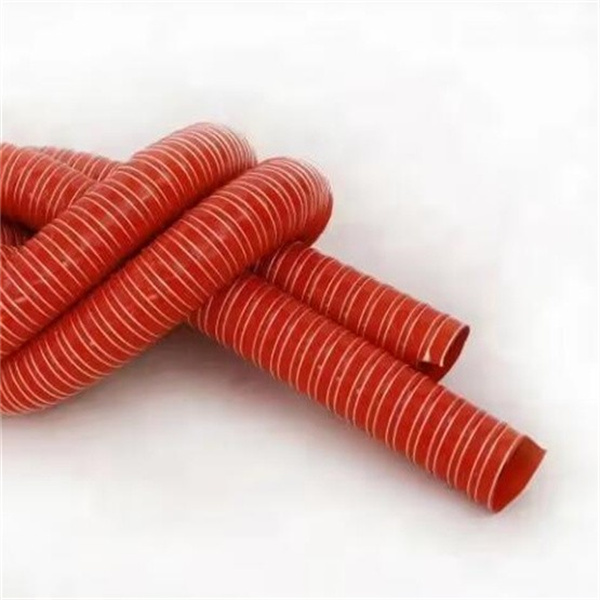

Glass-Fiber Ducting Hose
info@pushihose.com
Product Description
Wall: Silicone coated glass fiber fabric
Spiral: Spring steel wire
Reinforcement: Glass fiber cord
Temperature range:-70℃ to +300℃
Size:19mm-400mm
Wall thickness:1.0-1.1mm
Steel wire:1.2-2.3mm
Standard length:4m
Color:red,black
Double-layer of silicone coated glass fiber fabric
Extremely good heat resistance
Leak-proof
Smooth interior
Highly flexible
Small bending radius
Kink-proof
Appilication:
For transmission hot air, chemical fumes and industrial fumes,printing machines, blowers,exhausting gas, engine construction, engine warming, aircraft construction and military construction.
|
ID (mm) |
OD (mm) |
Working pressure (bar) |
vacuum pressure (bar) |
Length (m) |
|
3/4 |
19 |
3 |
0.8 |
4 |
|
1 |
25 |
3 |
0.76 |
4 |
|
1 1/4 |
32 |
2.8 |
0.65 |
4 |
|
1 1/2 |
38 |
2.6 |
0.6 |
4 |
|
1 3/4 |
44 |
2.6 |
0.58 |
4 |
|
2 |
50 |
2.6 |
0.55 |
4 |
|
2 1/2 |
63 |
2.4 |
0.46 |
4 |
|
3 |
75 |
2.1 |
0.43 |
4 |
|
3 1/4 |
80 |
2.1 |
0.4 |
4 |
|
3 1/2 |
89 |
2.0 |
0.35 |
4 |
|
4 |
102 |
1.9 |
0.35 |
4 |
|
5 |
127 |
1.5 |
0.28 |
4 |
|
6 |
152 |
1.4 |
0.28 |
4 |
|
6.2 |
160 |
1.2 |
0.17 |
4 |
|
7 |
180 |
1 |
0.15 |
4 |
|
8 |
200 |
0.8 |
0.1 |
4 |
|
10 |
250 |
0.6 |
0.08 |
4 |
|
12 |
300 |
0.5 |
0.07 |
4 |
|
14 |
350 |
0.4 |
0.06 |
4 |
|
16 |
400 |
0.3 |
0.05 |
4 |
“Strength builds the foundation, and excellent services reach all over the world.”
create win-win situation with customers
We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.
Related Products

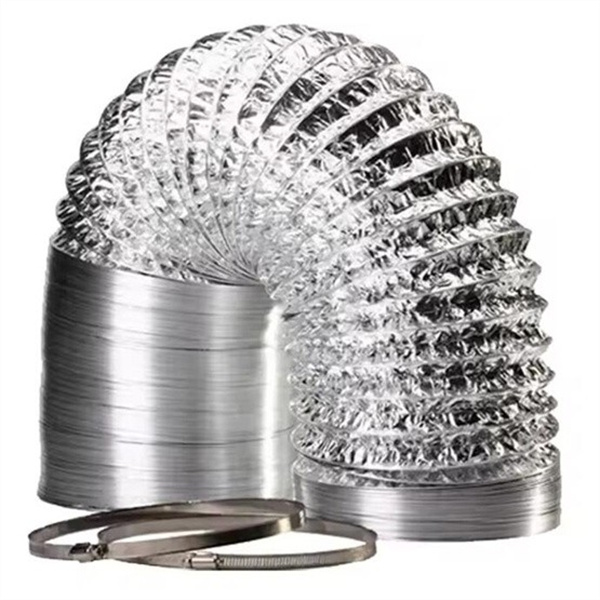

Aluminum Foil Duct Hose
Features: 1. Inside with high-grade aluminum foil, the surface is bonded with combustion-proof glass fiber cloth, inside with spiral high-tension steel wire support.The environmental protection water glue compound production simultaneously enhan ...
Nylon Fanric Duct Hose
Product Description Nylon fabric duct hose Sizes: 2" to 16" (50mm to 300mm) Standard Length: 10 m temperature range: -25℃ to +130℃ Material: seamless tube nylon spandex fabric with steel rin ...
Silicone Duct Hose
Silicone coated duct hose features 1. Covered with silica gel glass fiber, supported by spiral steel wire inside, cured once after 300 degrees of high temperature. 2. Maximum voltage 5000PA. 3. Standard diameter, smooth inner wall, ...

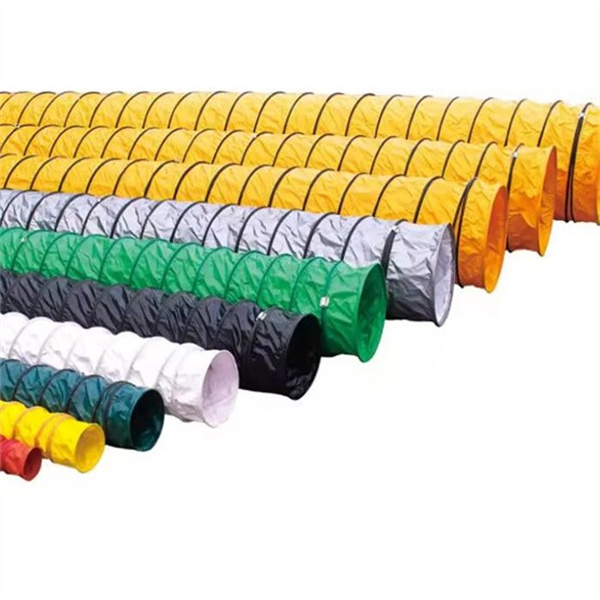

Other Industry Duct Hose
